Multiple Azure agents on Ubuntu

I have now multiple organizations in Azure DevOps that all have their own agent. This agent is used to build, test and release my projects.

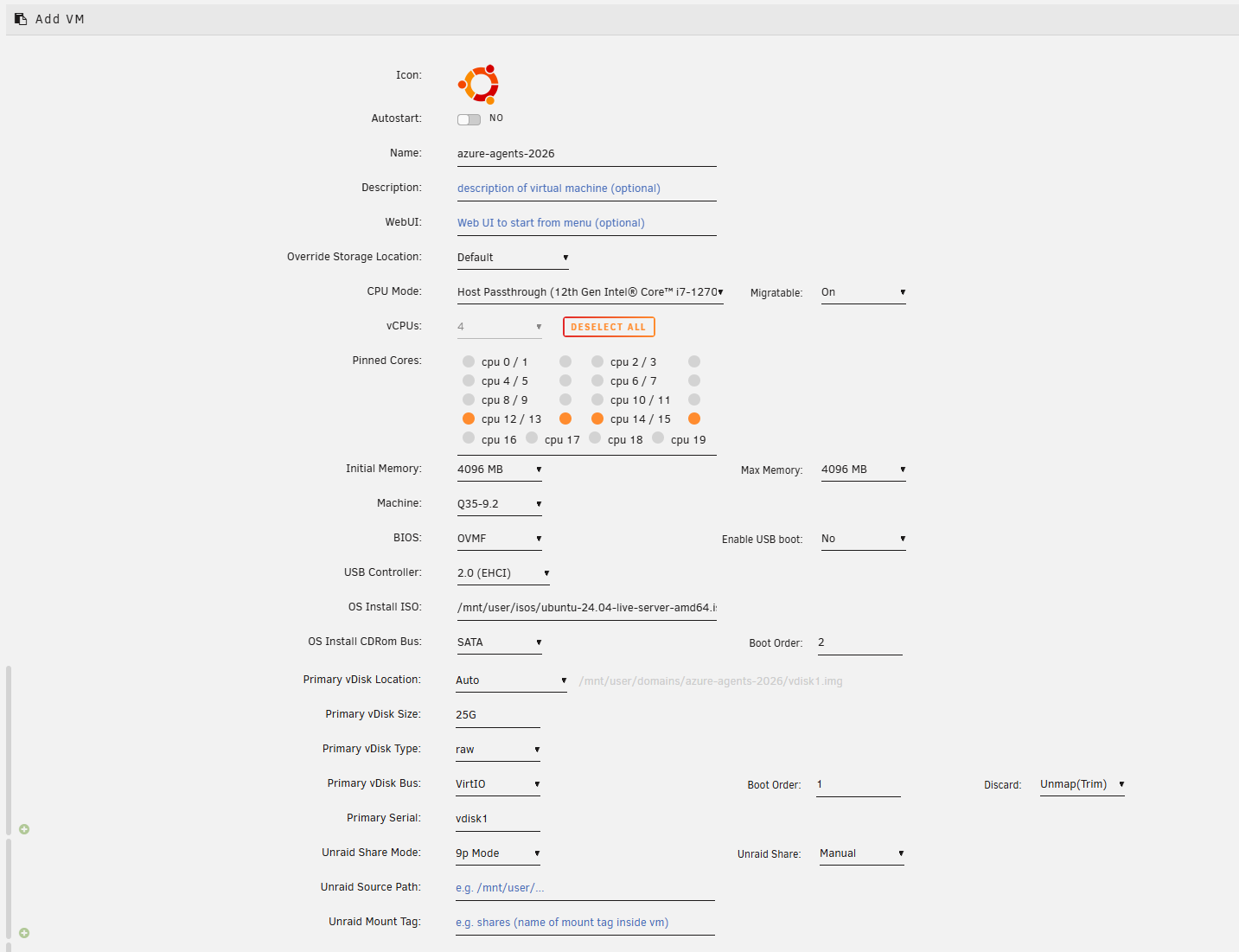

So the next option came to mind, build a virtual machine on my Unraid installation, with Ubuntu. Create multiple users in Ubuntu that all run their own agent that connects to the different Azure DevOps organizations.

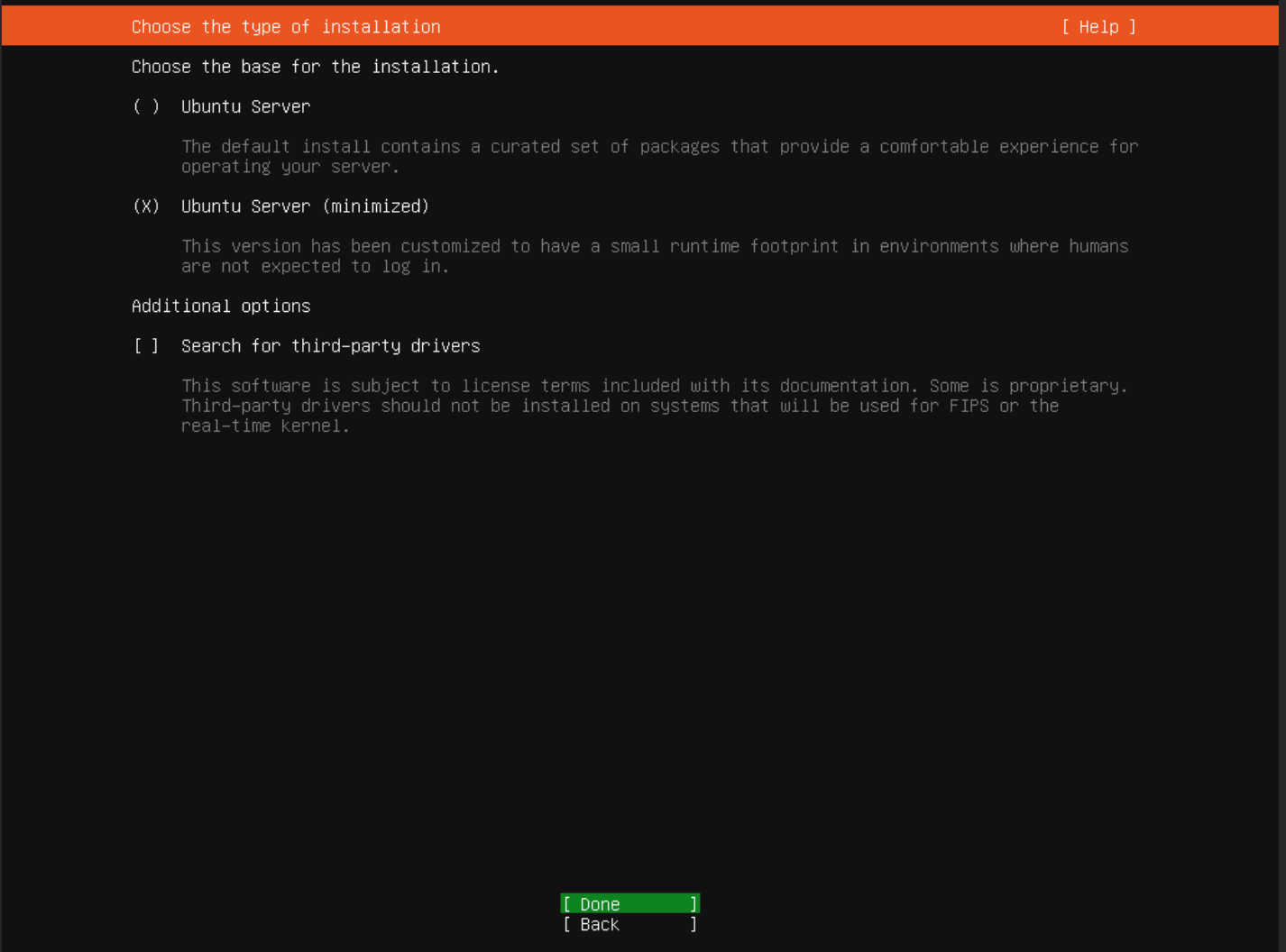

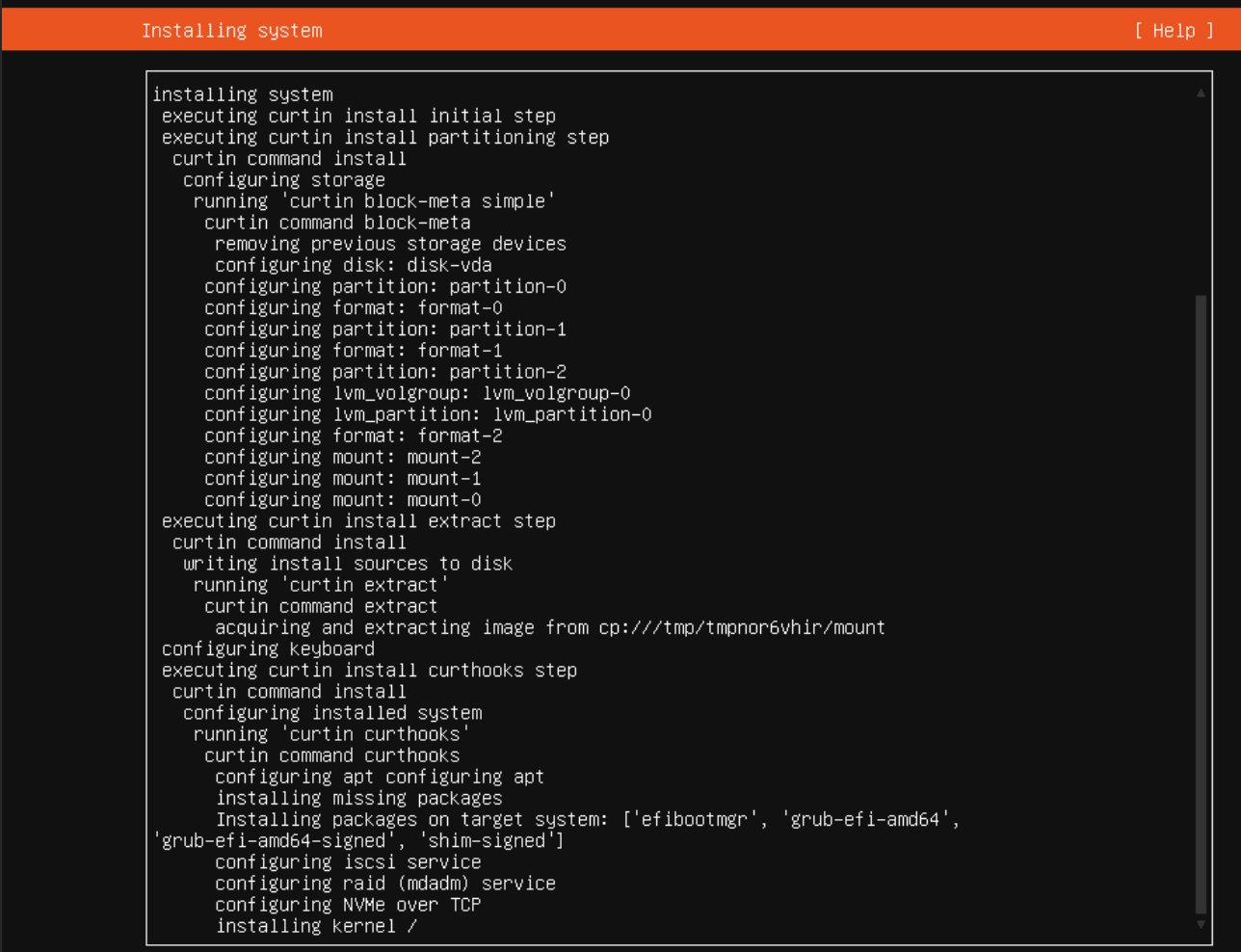

Install ubuntu

Super straight forward

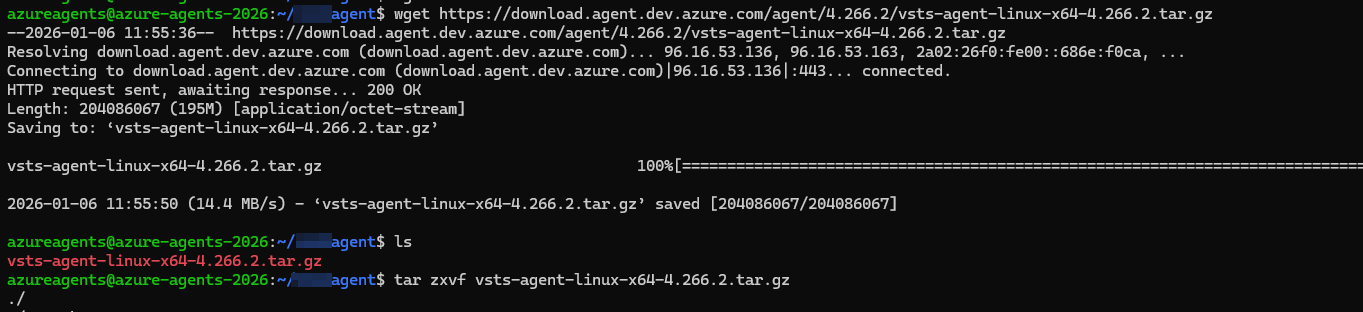

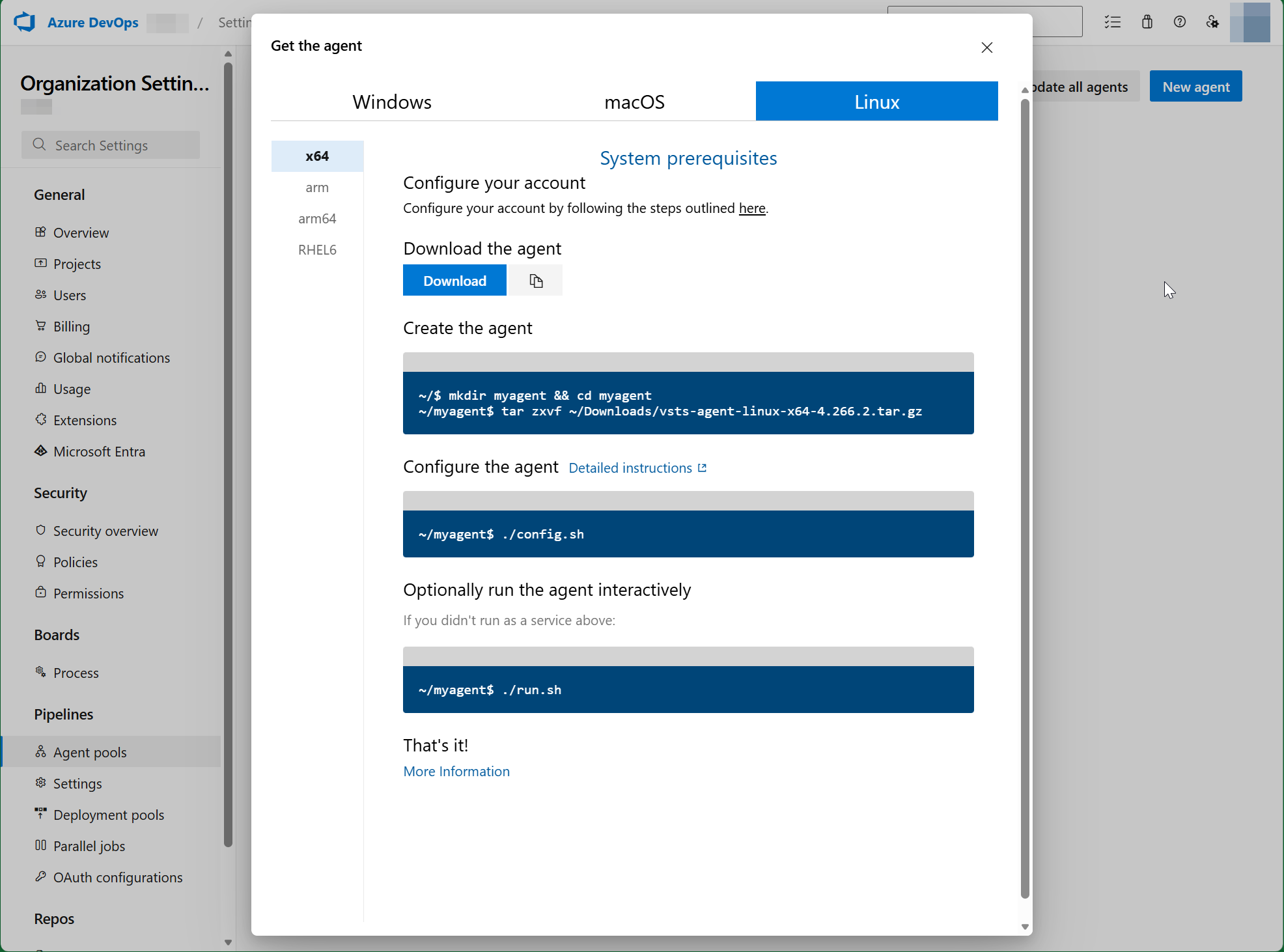

Install the self-hosted linux agent

I followed this guide from the Microsoft website itself https://learn.microsoft.com/en-us/azure/devops/pipelines/agents/linux-agent

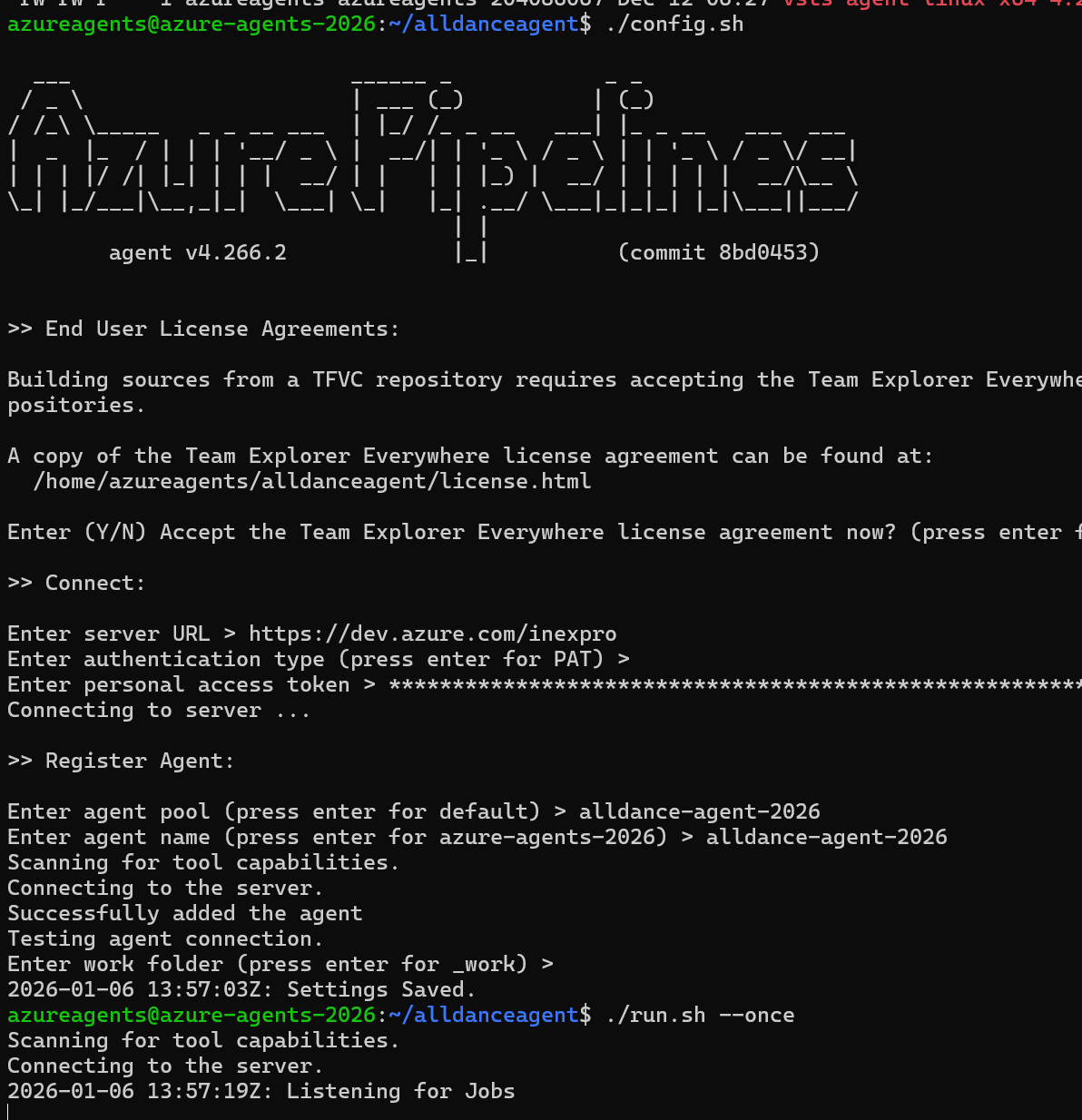

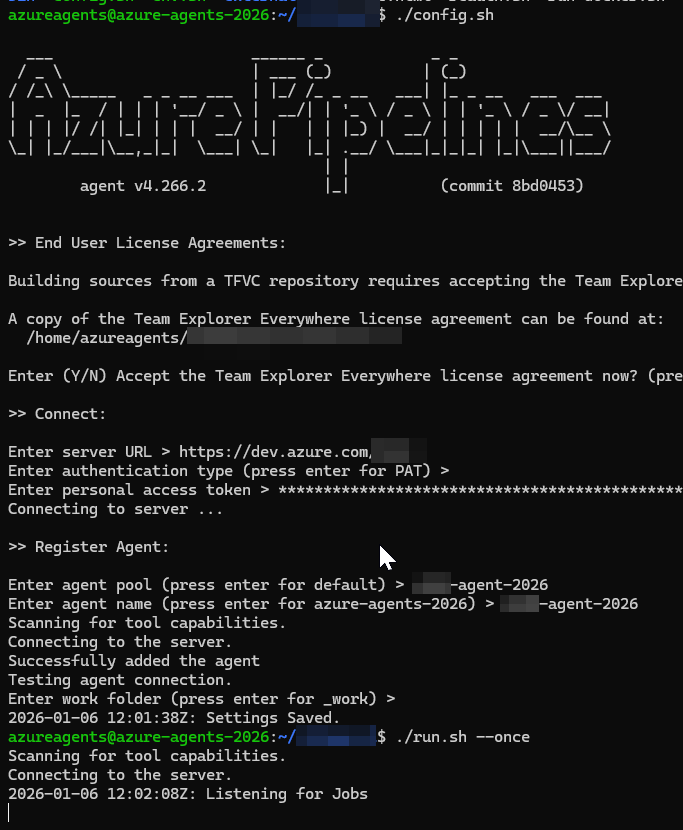

Configure the agent

The PAT can be created in the Azure DevOps page itself.

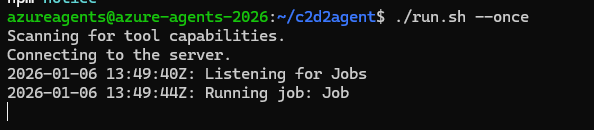

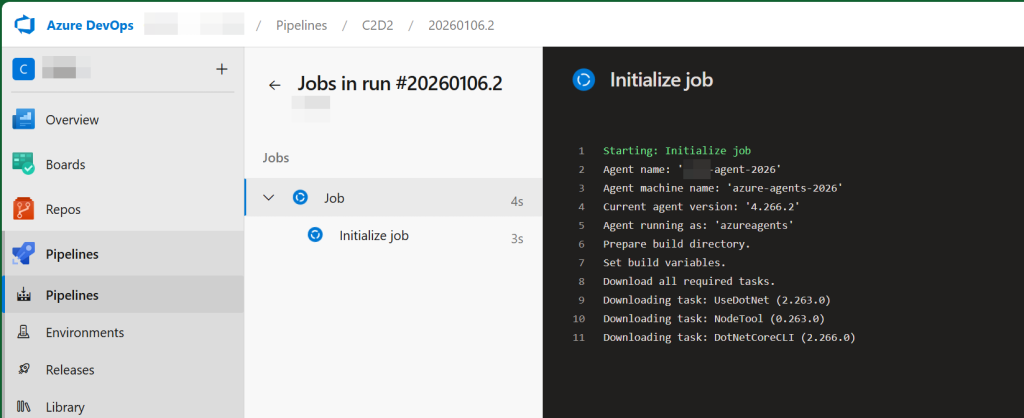

A quick test to run an existing pipeline on this agent pool:

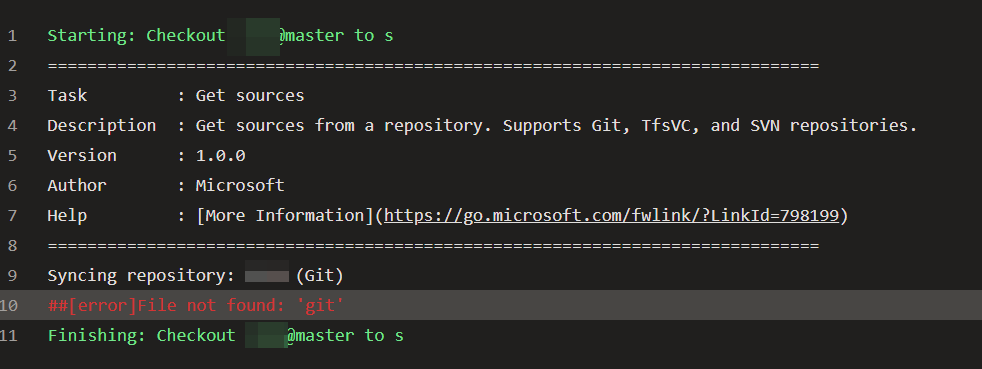

But I mis all kinds of programs to complete the Job

I’ve constructed this oneliner

sudo apt update && sudo apt install -y git curl ca-certificates zip unzip build-essential && curl -fsSL https://deb.nodesource.com/setup_24.x | sudo -E bash - && sudo apt install -y nodejs dotnet-sdk-8.0 dotnet-sdk-10.0 && sudo npm install -g @angular/cli

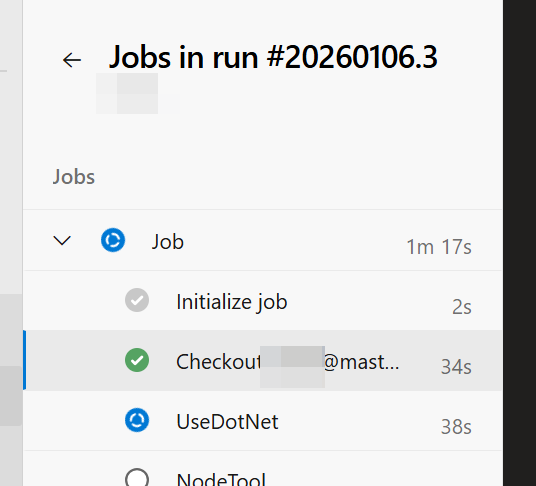

After, I have started the build job again

And the checkout job completed, I will asume the rest will pass as well, as it is only building a dotnet and angular app

Add a second agent, for another organization, to the server

For my project, called AllDance, I also want an agent to run on this server

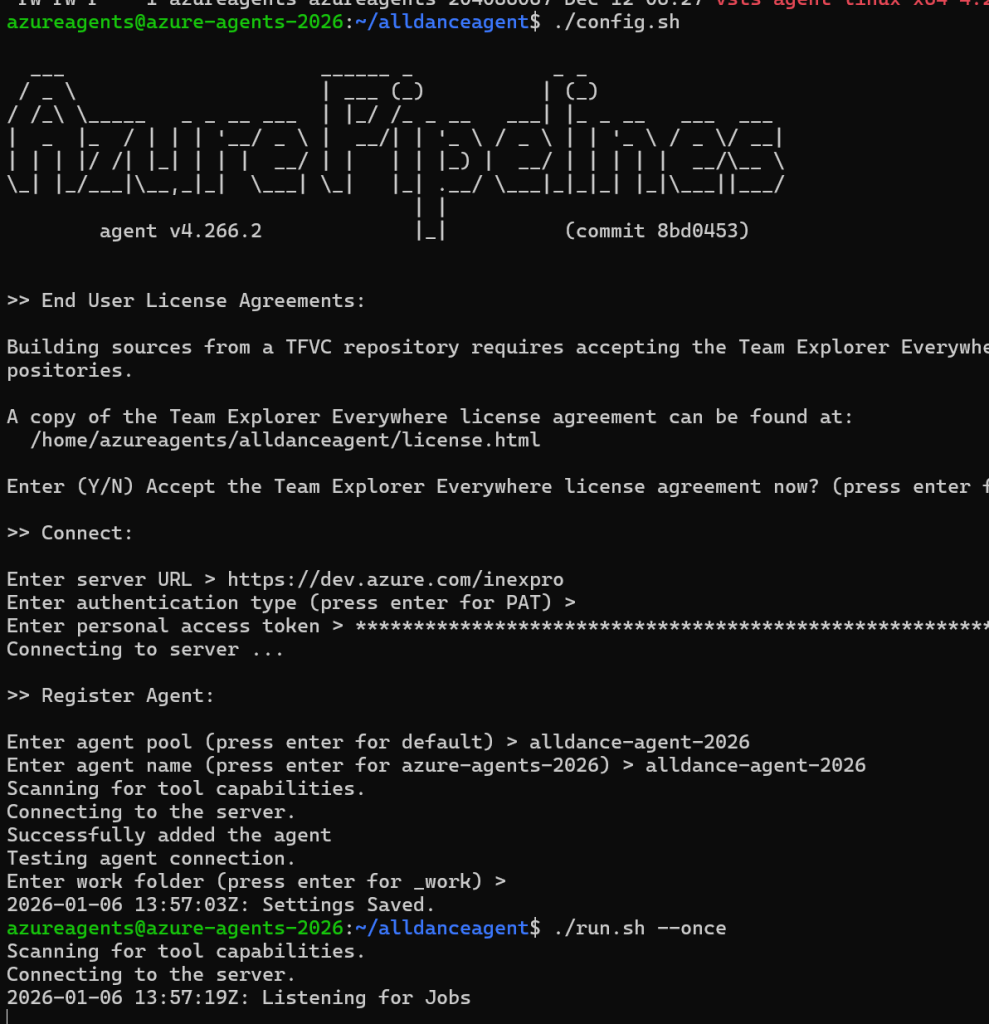

After the agent pool creation, again I have installed the agent via regular installation method

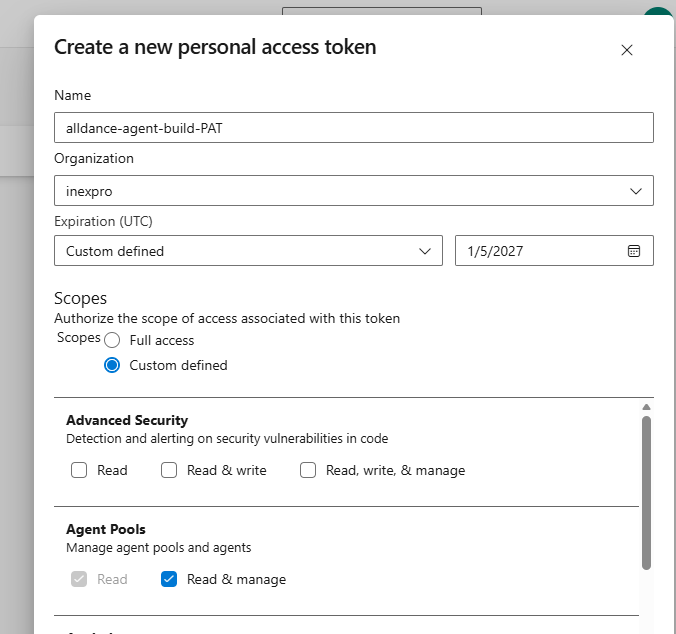

The PAT (personal access token) configuration

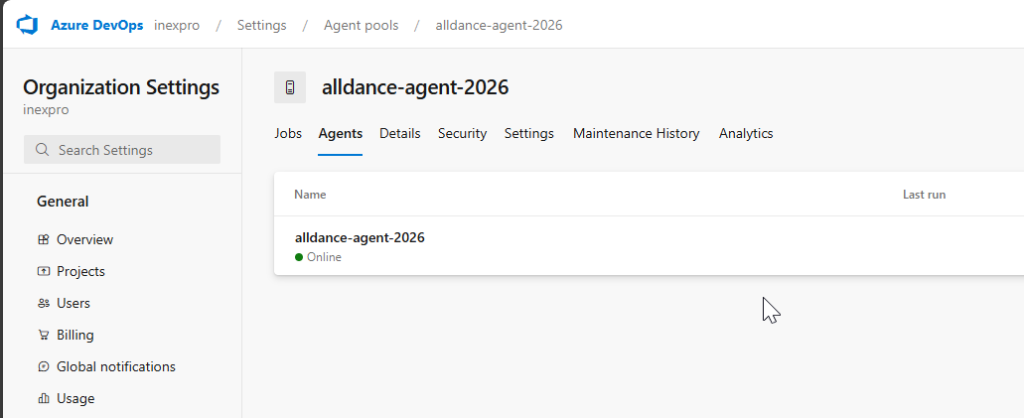

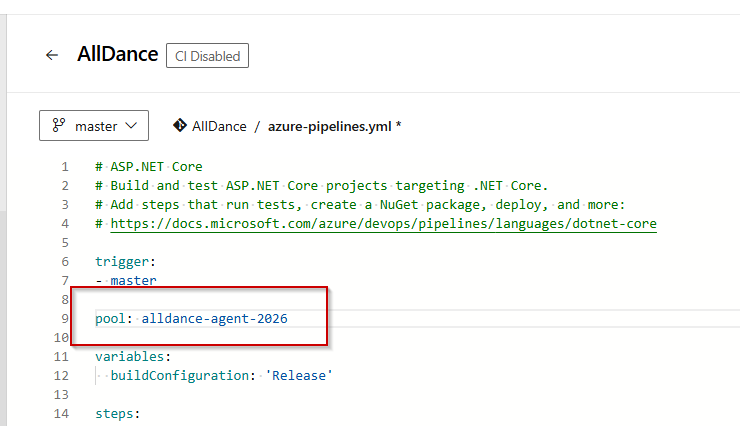

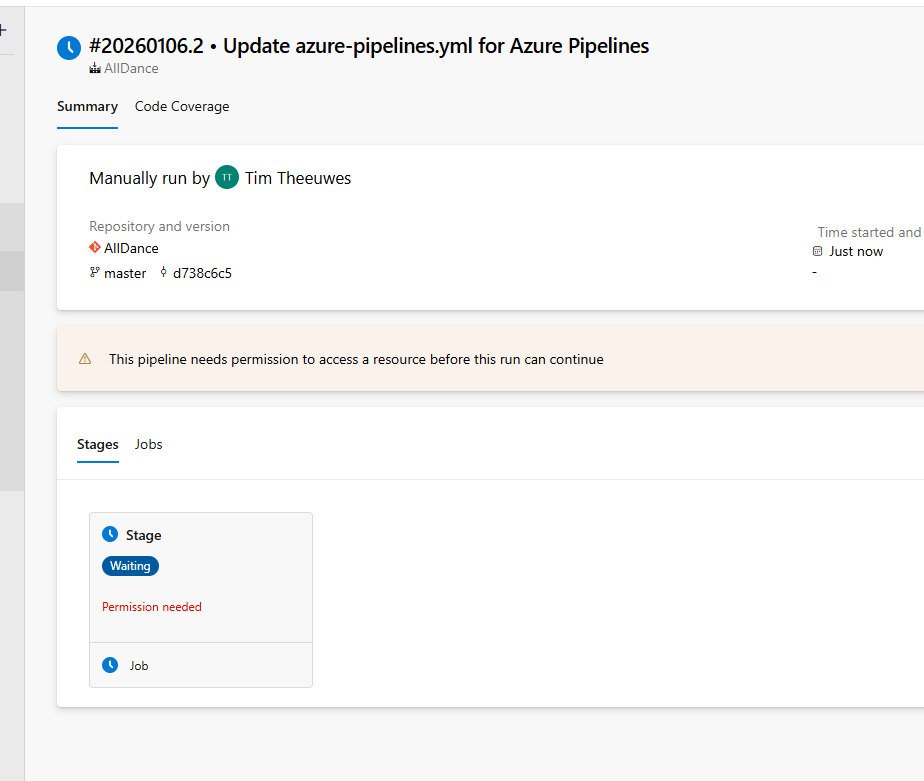

Now that the agent is online, I’ll update the pool name in the yml configuration.

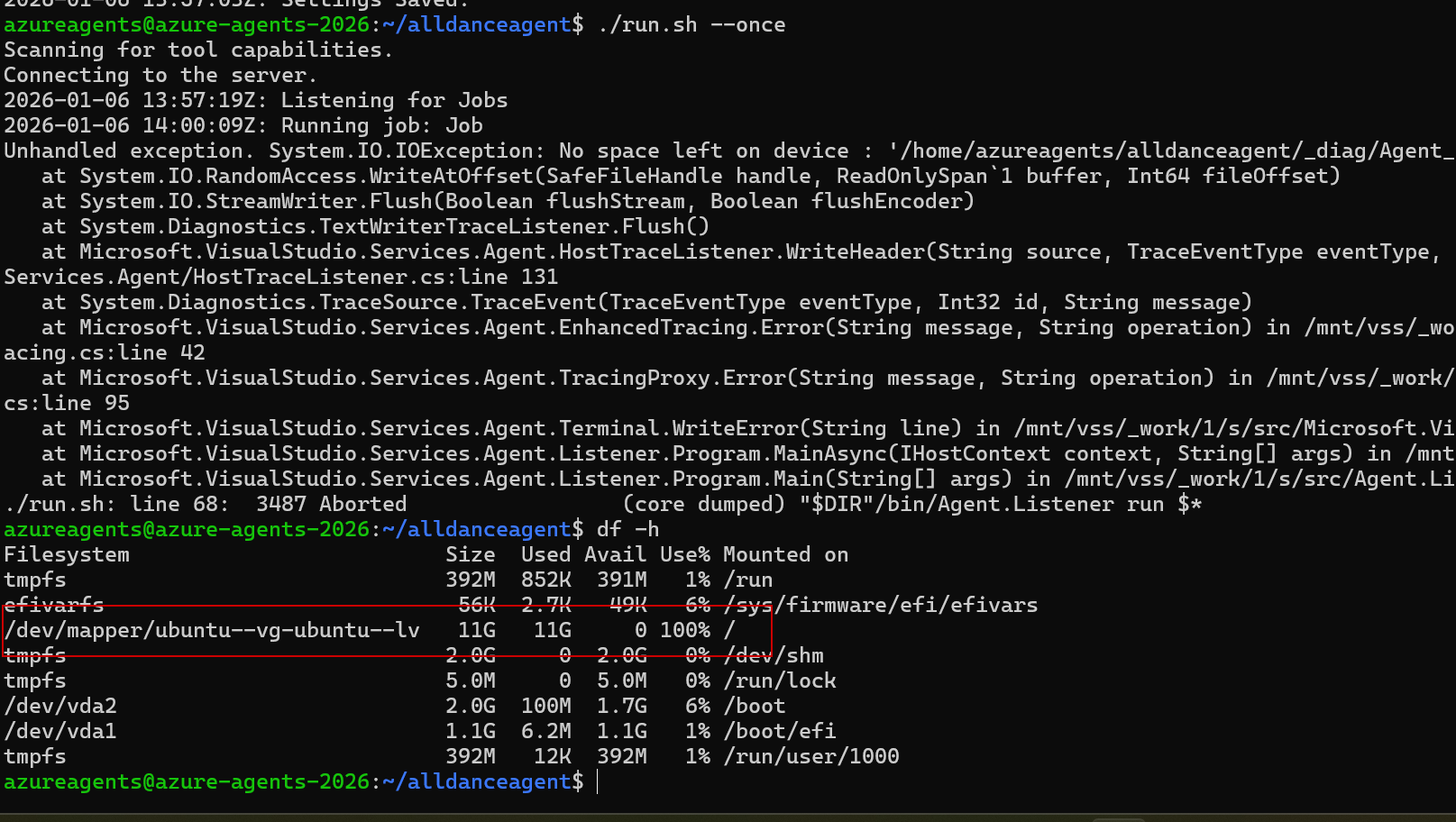

Diskspace issue…

I thought I had 25G of diskspace assisgned, but only 11G is visible on the / partition

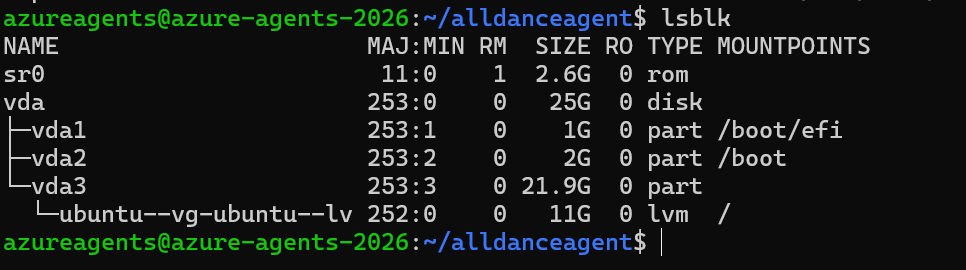

lsblk shows that I have more than enough space

The (ChatGPT) onelinener is

sudo pvresize /dev/vda3 && sudo lvextend -l +100%FREE /dev/ubuntu-vg/ubuntu-lv && sudo resize2fs /dev/ubuntu-vg/ubuntu-lv

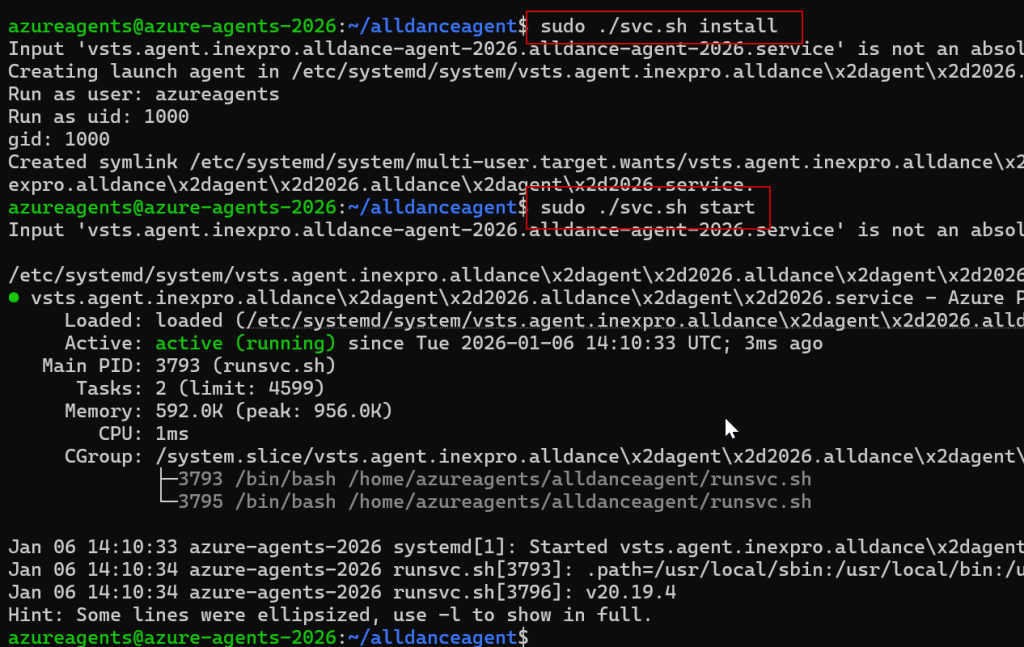

Install services

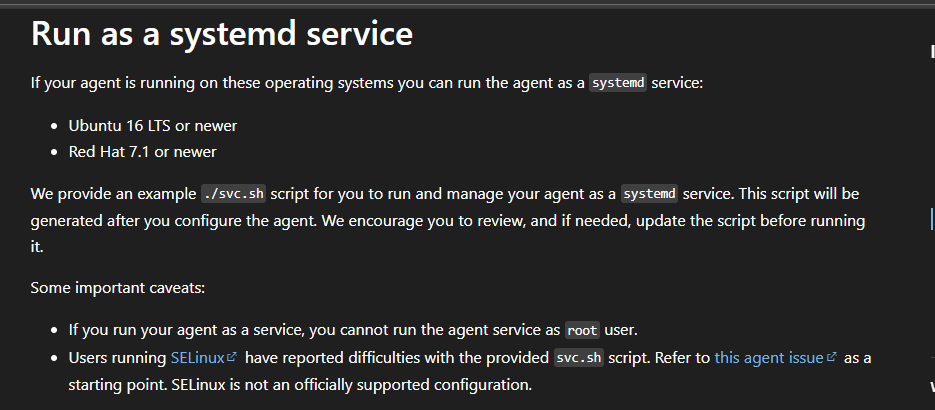

The documentation gives clear indication how to install the agent as a service Deploy an Azure Pipelines agent on Linux – Azure Pipelines | Microsoft Learn

I’ll also do this for the first created agent

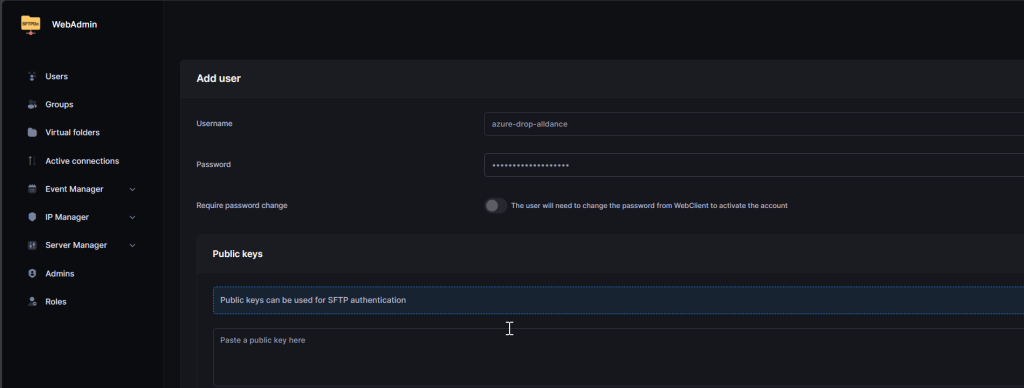

Create a drop location via SFTPGo

This docker container is running in the same VLAN as the Ubuntu VM I have just created. So connecting to it should be easy

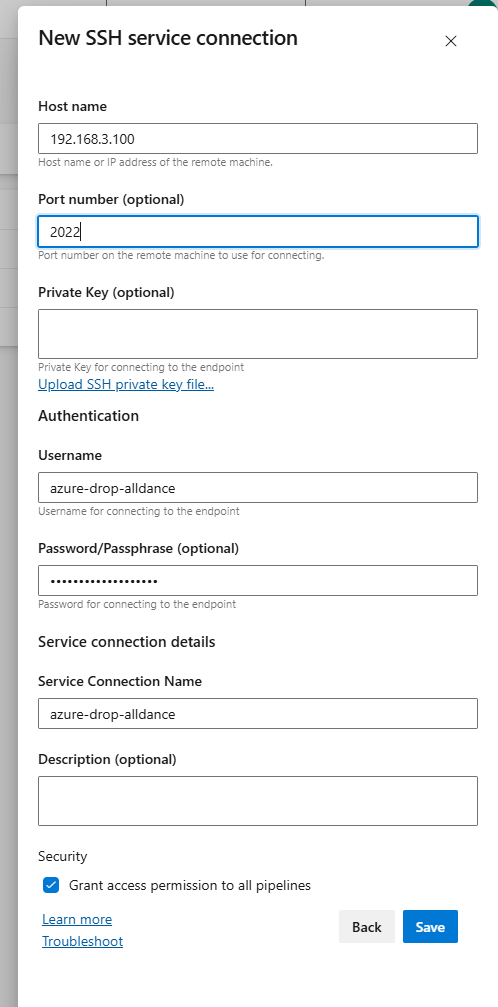

Next, in the Azure DevOps environment, I have created a service connection. SFTPGo uses 2022 as the service port, so I’ll use that

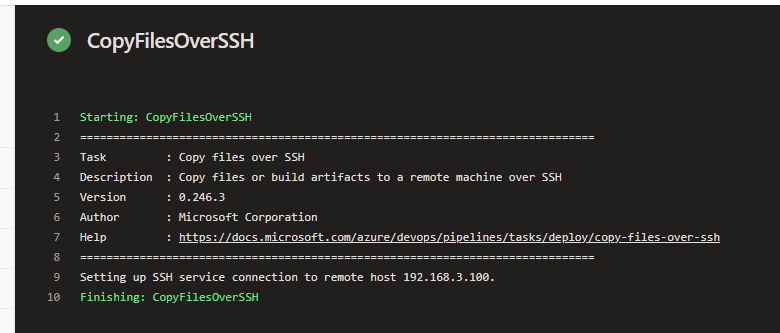

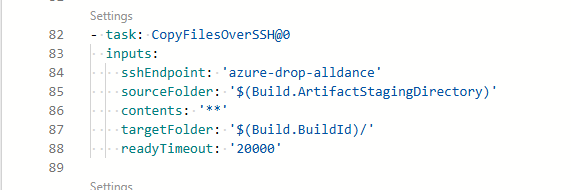

The pipeline was changed to copy files over this service connection

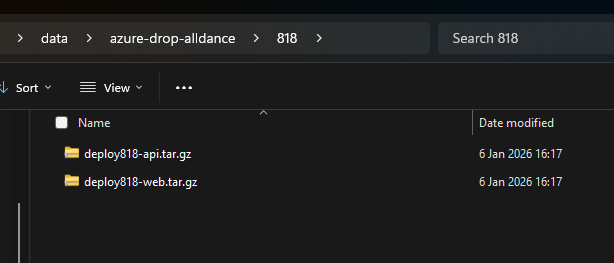

The result in my SFTPGo share, accessed from my local machine
